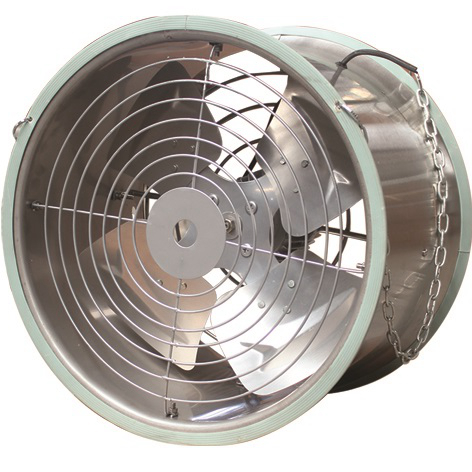

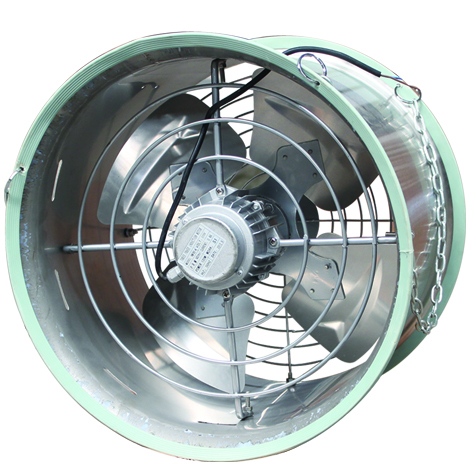

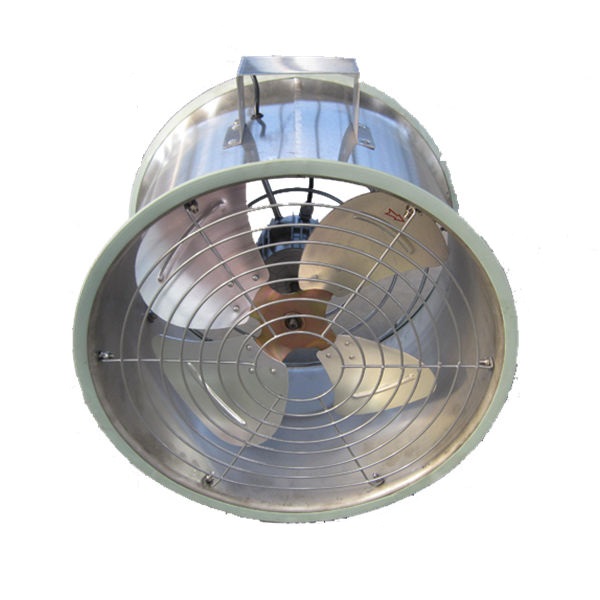

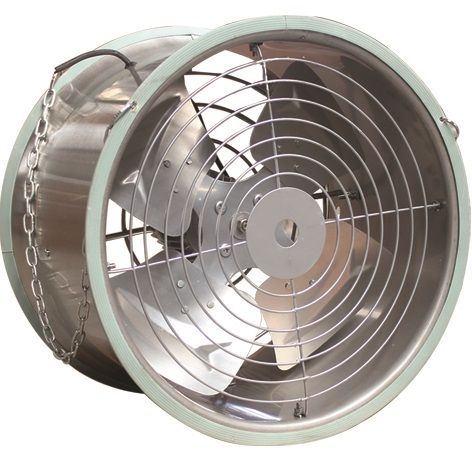

1) High quality stainless steel frame by stretching forming, attractive appearance, no rust
2) Fixed mount with special adjustable angle design which could change air direction as per requirement. Firmly fixed, stable operation, no swing when start
3) Fan blades are all adopt aluminum sheet by punch forming, attractive appearance, light weight, large air volume, lower vibration.
4) According to the high temperature and humidity in greenhouse, individually customized high quality totally enclosed GB motor, to ensure excellent performance.
Parameters:
Type |
Blade diameter (mm) |
Voltage (V)
|
Frequency (Hz) |
Power (W) |
Rotate Speed (RPM) |
Airflow (m3/h) |
Dimension (mm) |
EOF(g)-400 |
400 |
220/380 |
50 |
180 |
1400 |
5300 |
470*470*360mm |
EOF(g)-500 |
500 |
220/380 |
50 |
270 |
1400 |
6300 |
580*580*360mm |
